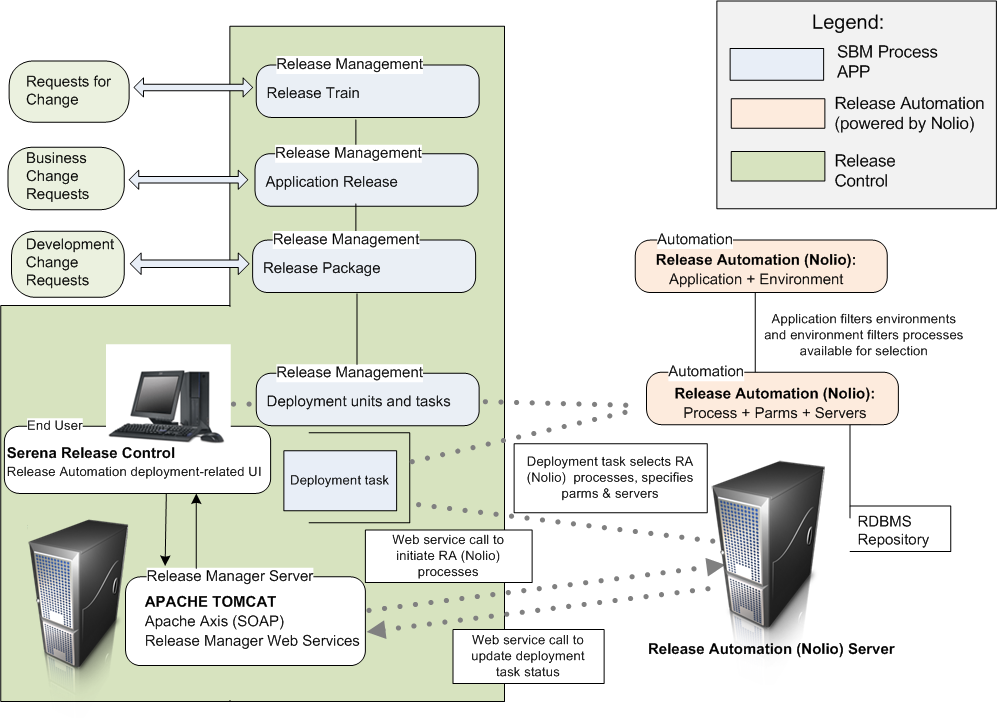

The architecture that supports the Serena Release Automation, powered by Nolio, integration is shown in the following figure:
This figure shows how Serena Release Automation communicates with Serena Release Manager through automation deployment tasks and Web services calls. The automation deployment tasks workflows and forms are configured in the Deployment Tasks process app. Additional connection and client information are specified in the ALM Configurator and the client configuration files.
