Application processes tell Deployment Automation what to do when you deploy whole applications.
You design processes using the process editor. In the process editor you drag process steps from a menu of steps onto the design space and configure them immediately. As you place additional steps, you visually define their relationships with one another.
For application processes, you select from a menu of utility steps and other steps such as installing components. These enable you to operate on sets of components associated with the application.

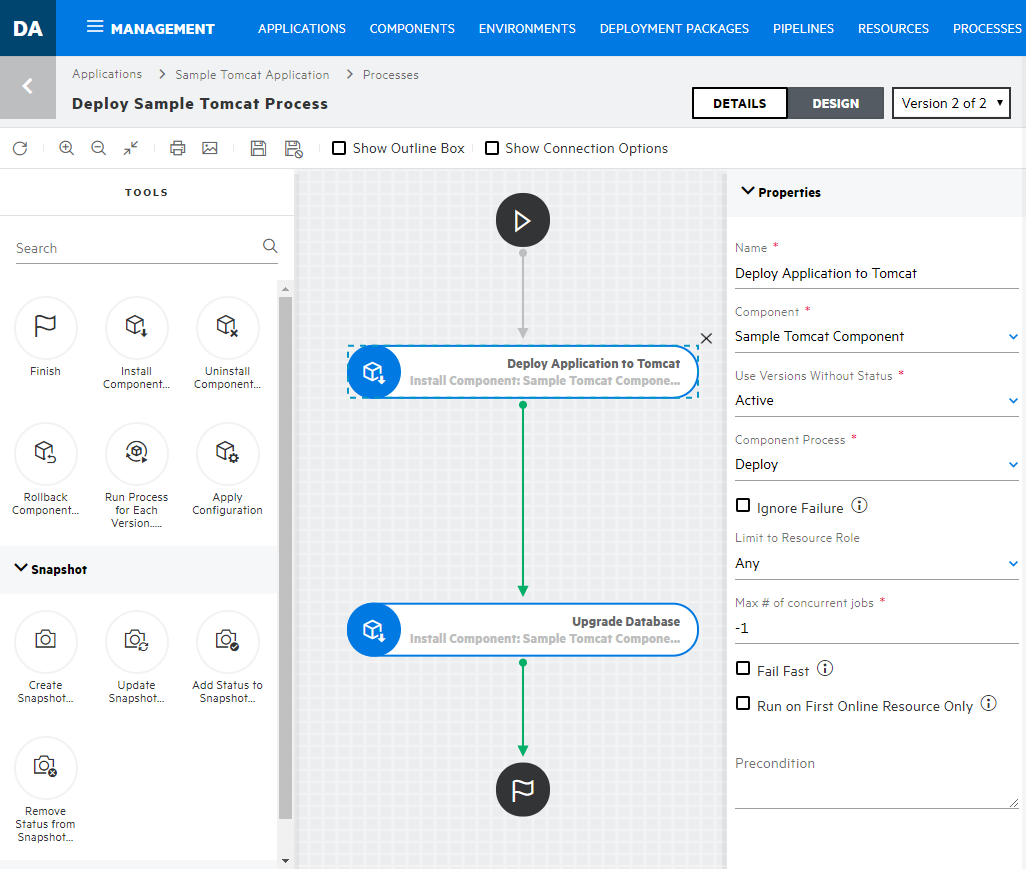

Application Process Design
- Select from a set of options for the process designer, including the
following:
- Zoom In
- Zoom Out
- Actual Size
- Poster Print
- Save
- Cancel
- Show Outline Box: Use this to move the whole process design
around in the design area. For example:
- Drag its corner inward and move it over parts of the process design to zoom in.
- Drag its corner outward again to zoom out.
- Show Connection Options: Select this to show the options for all connections.
- In Tools, select process steps.
- Use the Search box to find a step by name.
- Select and drag steps to the design area to add them to your process.
- Connect process steps and edit or delete existing steps or connections, see Connecting Process Steps.
- Properties are automatically shown when you select a step.
