Component Process Details

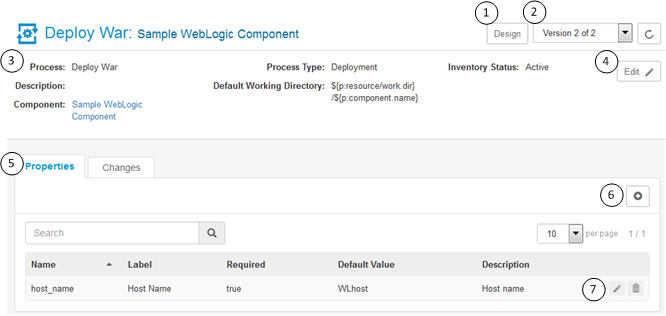

After you create a process, beside the process in the process list, click the Details icon (image) to open the process details page. From this page you can view and edit the process details, add properties, and view its changes. The details page for a selected component process is shown in the following figure.


  1. Click the Design button to add and edit process steps.
  2. Select the version of the process design.
  3. View the process details.
  4. Edit the process details.
  5. Select the Properties tab to access process properties; select the Changes tab to view changes made to the process.
  6. Click the Add Properties button to add process properties.
  7. Click the associated icon to edit or delete a listed property.
