An alternative way to deploy requests is to use action driven deployment. This scenario is similar to Scenario 2: Deploying Requests to a Single Deployment Area, the main difference is that some of the request lifecycles states are mapped to the GSL. When a request is actioned to a lifecycle state that is mapped to a stage in the GSL, it is automatically promoted to that stage. If Deploy by Default is on for that stage’s deployment area, the request is automatically deployed to the area.

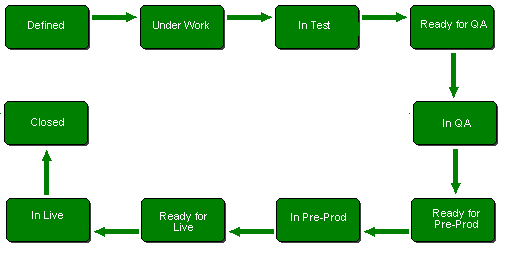

This scenario uses the following extended lifecycle for enhancement requests:
The following table shows request lifecycle states that are mapped to stages in the GSL.
|
Request lifecycle state |
Mapped to GSL stage |
|---|---|
|
Raised |
DEV |
|
Under Work |
|
|
In Test |
SIT |
|
Ready for QA |
QA |
|
In QA |
|
|
Ready for Pre-Prod |
PRE-PROD |
|
In Pre-Prod |
|
|
Ready for Live |
|
|
In Live |
LIVE |
|
Closed |
|
NOTE This scenario does not contain detailed steps.
Rita, the release manager, does the following:
Raises an enhancement request to manage the change that is required to the Qlarius web application. By default the request is at the DEV stage when it is created.
Delegates the request to Ted, the team lead.
Actions the request to its next lifecycle state, Under Work. The request is removed from Rita’s Request inbox.
Ted does the following:
Does some design work to see what part of the application is affected.
Primes a child task from the request. By default the task is at the DEV stage when it is created.
Delegates the task to Dinesh, a developer.
Actions the task to its next lifecycle state, Under Work. The task is removed from Ted’s Request inbox.
Dinesh does the following:
Update his work area from the stream.
Modifies the sources.
Delivers the changes to the stream and relates them to the task. Deploy by Default for the DEV area is enabled so the sources are automatically deployed.
Delegates the task to the team lead for peer review.
Action the task to the next lifecycle state, Peer Review. The task is removed from Dinesh’s Request inbox.
Ted does the following:
Performs a peer review.
Actions the task to its final state, Closed. The task is removed from Ted’s Request inbox.
Actions the request to the In Test state. This lifecycle state is mapped to the SIT stage therefore the request and child tasks are automatically promoted to the SIT stage. Deploy by Default for the SIT area is enabled so the request and task are automatically deployed.
Performs system integration tests.
Actions the request to the Ready for QA state. This state is mapped to the QA stage therefore the request and child task are automatically promoted to the QA stage. Because of the separation of duties the team lead cannot deploy the request and task to QA (Deploy by Default is not enabled for the QA deployment area).
Tao does the following:
Actions the request to the In QA state.
Deploys the request and child task to the QA deployment area.
Delegates the request to a QA engineer who tests the request. After completing the tests the engineer delegates the request back to the QA manager.
Actions the request to the Ready for Pre-Prod state. This state is mapped to the PRE-PROD stage therefore the request and child task are automatically promoted to the PRE-PROD stage. Because of the separation of duties the QA manager cannot deploy the request and task to PRE-PROD (Deploy by Default is not enabled for the PRE-PROD deployment area).
Rita, the release manager, does the following:
Actions the request to the In Pre-Prod state.
Deploys the request and the child task to the PRE-PROD deployment area.
Delegates the request to a release engineer who tests the request. After completing the tests the release engineer delegates the request back to the release manager.
Actions the request to the Ready for Live state.
During the regular maintenance period when the LIVE deployment area is offline, actions the request to the In Live state. This state is mapped to the LIVE stage therefore the request and child task are automatically promoted to the LIVE stage. Deploy by Default is not enabled for the LIVE stage so no deployment takes place with the promotion.
Deploys the request and child task to the LIVE deployment area.
Actions the request to its final state, Closed.
